Complete solution for high-precision welding and cutting in a single machine!

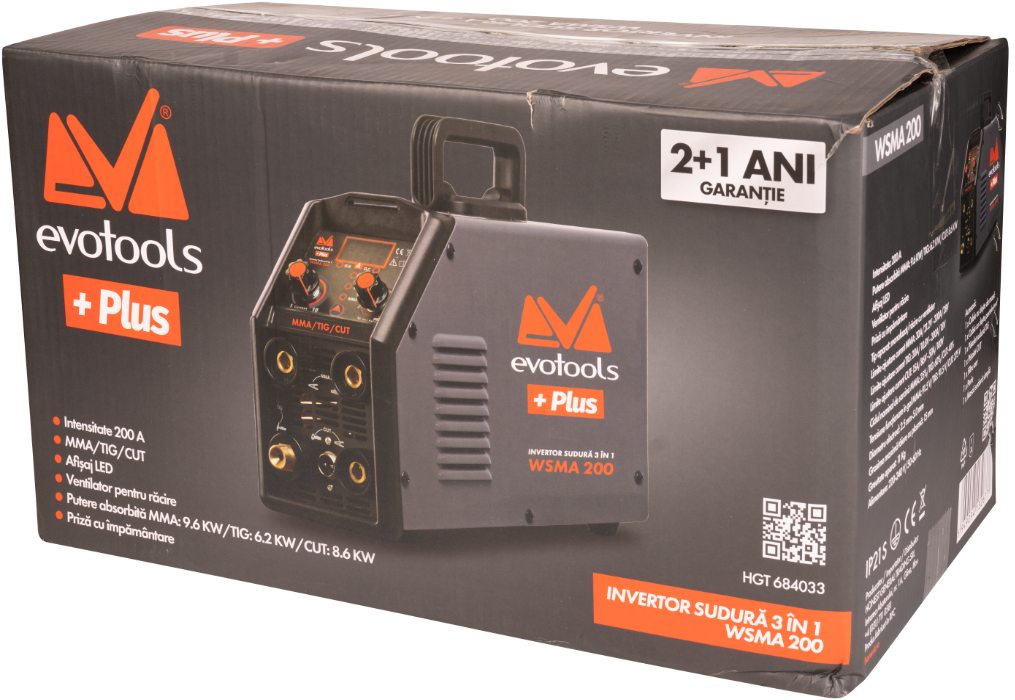

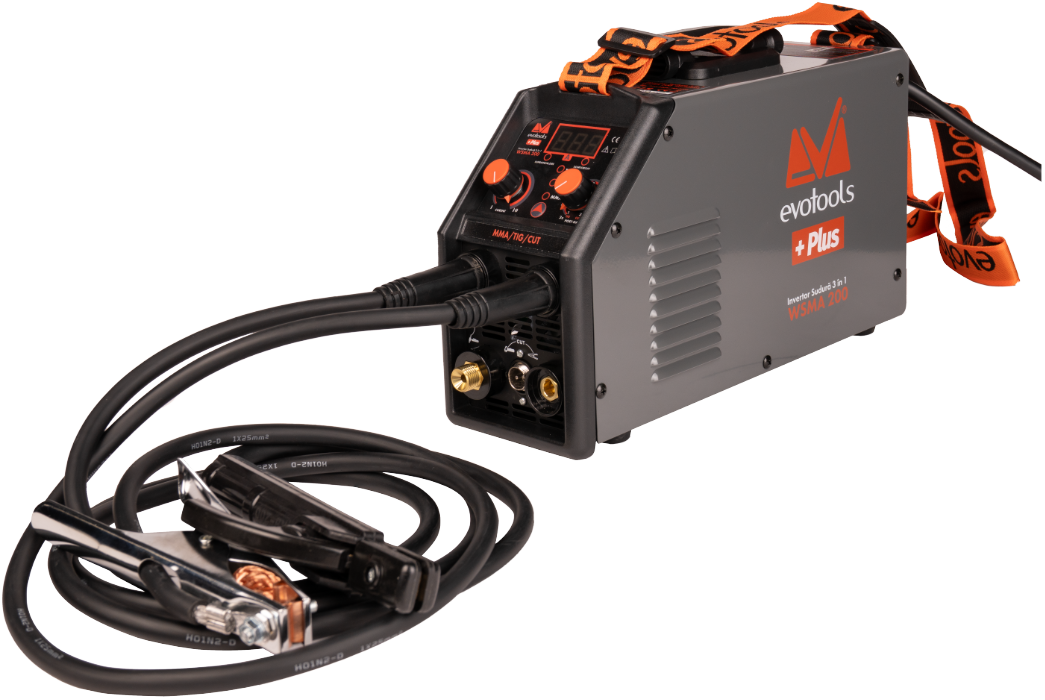

The EvoTools +Plus® WSMA 200 inverter redefines versatility in your workshop, combining three essential functions in one compact unit: MMA welding, TIG welding and plasma cutting (CUT). It is the ideal equipment for jobs that require both joining metals and cutting them quickly and cleanly, offering a power of up to 200A for welding and 50A for cutting.
Digital control and monitoring via the LED display allow extremely precise adjustment of the parameters, ensuring a stable arc and a final result of professional quality. Inverter technology guarantees high energy efficiency and a constant output current, regardless of voltage fluctuations. The robust construction is supported by an efficient cooling system and integrated protections against overheating and overload, enabling it to cope with the most demanding working environments.
Technical specifications
- Supply voltage: 230V ~ 50-60Hz
- Rated output current (MMA/TIG): 200 A
- Rated output current (CUT): 50 A
- Duty cycle (MMA): 25% at 200A,
- Duty cycle (TIG): 60% at 200A,
- Duty cycle (CUT): 40% at 50A,
- Maximum absorbed power (MMA): 9.6 Kw
- Maximum absorbed power (TIG): 6.2 Kw
- Maximum absorbed power (CUT): 8.6 Kw
- Electrode diameter (MMA): 2.5 - 5.0 mm
- Protection class: IP21S
Accessories:
- Plasma cutting torch (CUT torch)
- TIG torch
- Cable with electrode holder
- Cable with earth clamp
- Air hose
- Air filter
- Mask and brush
Functions:
MMA welding, TIG welding, plasma cutting (CUT),
Digital control,
LED display.
Overheating and overload protection

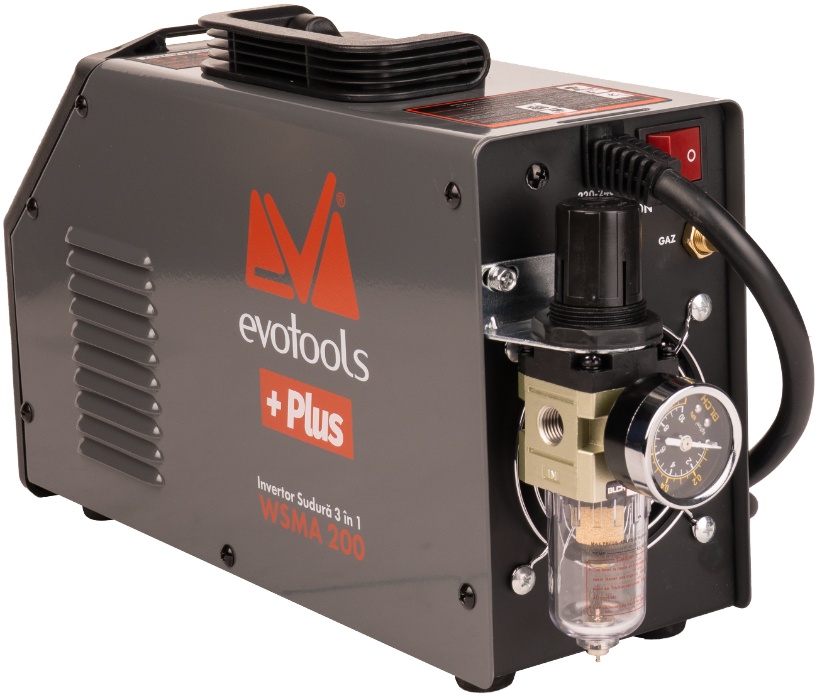

Note: The machine requires an external compressed-air source for the CUT function!
