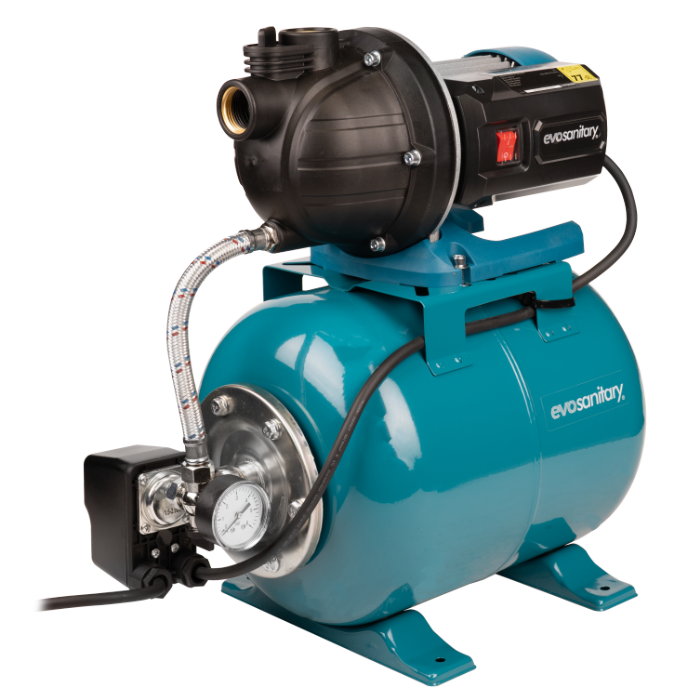

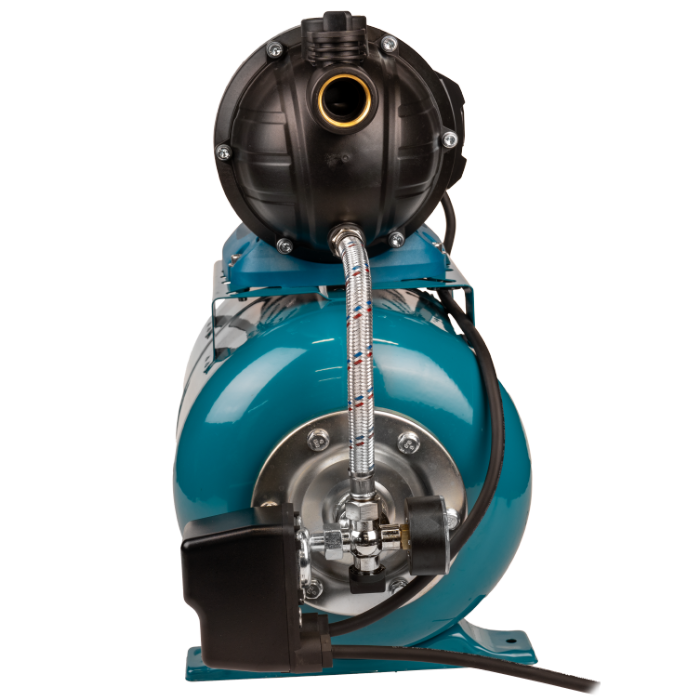

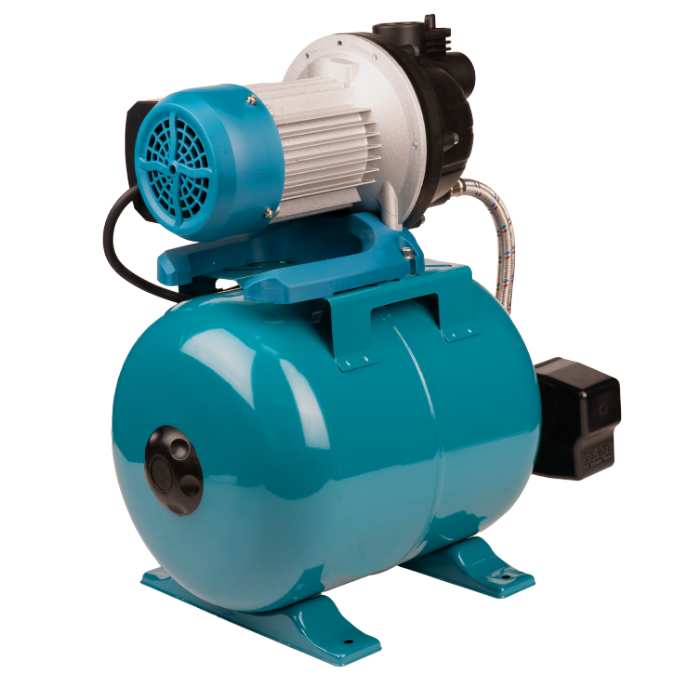

This pressure booster set is designed for the automatic water supply of dwellings, households or irrigation systems, using water from wells, boreholes or storage tanks. Thanks to the integrated self-adaptive pressure switch, the pump automatically sets the start and stop pressure according to the installation. If the automatically set start pressure does not meet the requirements of the installation, it can be adjusted manually. It is equipped with an opening for easy filling/priming of the pump before operation.
The system operates automatically, starting and stopping the pump according to the set pressure, providing convenience and efficiency in use.
With a power of 800 W, the pressure booster set allows suction of water from a depth of up to 7 m and pumping to a maximum head of 38 m, ensuring a maximum flow rate of 83 L/min. The expansion vessel with a capacity of 19 L helps reduce the number of pump starts, extending the service life of the equipment. The pump body is made of corrosion-resistant cast iron, providing increased durability and long-term operational reliability. The tank is made of electrostatically painted steel, offering high strength, and the interior is fitted with a high-quality EPDM membrane, an elastic material resistant to pressure variations.
Technical data:
Rated power: 800 W
Maximum suction depth: 7 m
Maximum delivery head: 38 m
Maximum flow rate: 83 L/min
Maximum operating pressure: 3.8 bar
Tank volume: 19 L
Maximum pumped liquid temperature: 35°C
Filter: No
Protections: thermal, with automatic reset
Connection: 1”
Protection rating: IP54
Noise level: 77 dB(A)
Net weight: ~10 kg
The pressure booster sets must be installed in locations protected from the weather and away from areas with high humidity.
To protect the pressure booster set and the installation, it is recommended to install a particle and impurity filter or, where appropriate, a filter for protection against limescale deposits, on the supply line, BEFORE the pressure booster set.
Do not use the product for extracting hydrocarbons (fuels, oils, solvents, etc.) or other liquids.
