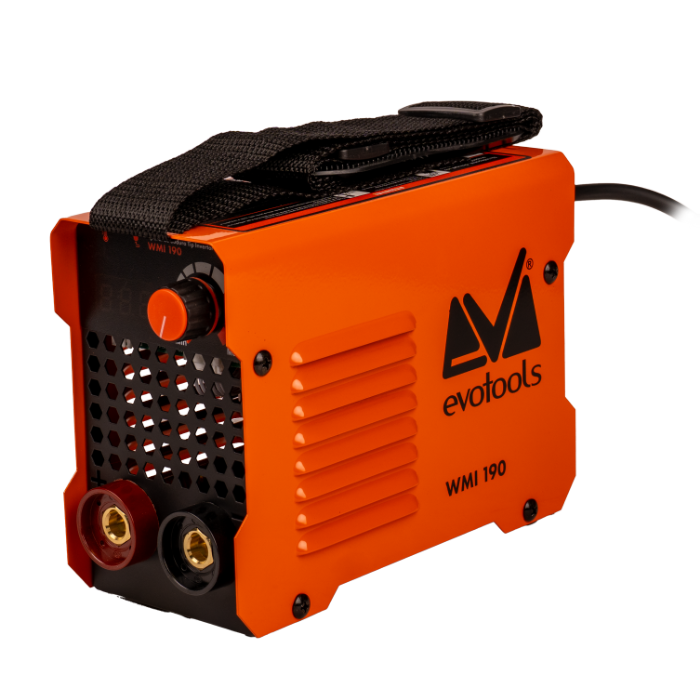

Inverter Welding Machine WMI190 EvoTools®

Inverter welding machine WMI190 EvoTools®

The WMI190 EvoTools® inverter welding machine is a compact and efficient solution for welding tasks in hobby or semi-professional use. Thanks to inverter technology and digital control, it provides excellent arc stability and consistent performance, while being easy to operate even for less experienced users.

Its compact design and low weight make it ideal for mobile work, at home or in the workshop.

Technical specifications
Supply voltage: 220–240 V / 50–60 Hz
Maximum current (15%): 120 A
Maximum current (60%): 69.3 A
Maximum current (100%): 53.7 A
Welding current range (15%): 30A – 120A
Welding current range (60%): 30A – 69.3A
Welding current range (100%): 30A – 53.7A
Open-circuit voltage: 60 V
Maximum power: 5.1 kVA
Maximum absorbed current (I1max): 22.16 A
Effective absorbed current (I1eff): 9.91 A
Insulation class: I
Protection rating: IP21S
Type of machine: single-phase, fan-cooled
Net weight: ~2 kg

Functions and features
Full digital control for welding stability
Constant power during use
Integrated functions:
Hot Start – easy arc ignition
Arc Force – stable welding arc
Anti-Stick – prevents electrode sticking
Digital display for precise adjustment
Compatible with electrodes:
2.5 mm – 3.2 mm

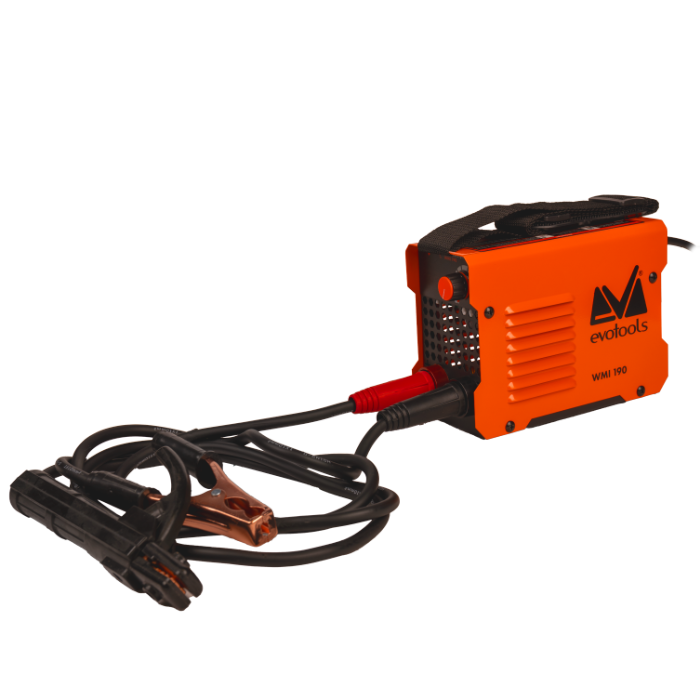

Included accessories
Electrode holder with 1.5 m cable
Earth clamp with 1 m cable
Carrying strap

Field of use
Welding work around the home
Light repairs (fences, gates, metal structures)
Small workshops and service stations
Maintenance and DIY work

Advantages
Compact size and easy to transport
Low energy consumption
Easy to use, including for beginners
Automatic functions to protect the equipment and the user
