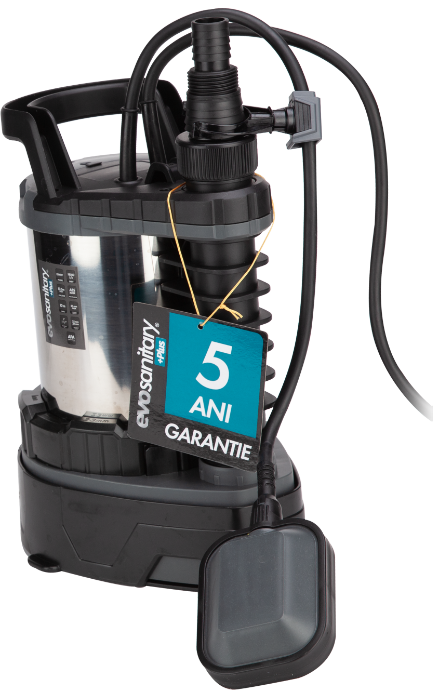

This type of pump is used for irrigating small gardens, supplying clean water to temporary installations, conveying non-corrosive liquids, and filling/emptying tanks and small swimming pools. Easy to transport thanks to the handle it is equipped with and its low weight.
It is equipped with an electric float switch for automatic starting and stopping of the pump when the water level drops below the minimum level.
Thanks to the materials used in the manufacture of the pump, ABS and stainless steel, the risk of rust formation is considerably reduced.
On the pump body, at the bottom, there is a ring with which you can adjust the pump according to the type of water, clean or dirty.
By turning the ring to the 23 mm position, the slots through which the water enters are fully open. This setting is used for dirty water with impurities not exceeding 5 mm. In this case the pump has the highest (maximum) flow rate.
By turning the ring to the 1 mm position, the slots through which the water enters are almost closed. In this case, water can be pumped from the lowest level mentioned in the technical documentation.
Specific operating details:
Resistant to suspended solid particles (sand, sludge).
Technical data:
Rated power: 750 W (682530) / 1000 W (682531)
Maximum immersion depth: 7 m
Maximum pumping height: 8.5 m (682530) / 10.5 m (682531)
Maximum flow rate: 266 L/min (682530) / 308 L/min (682531)
Maximum working pressure: 0.85 bar (682530) / 1.05 bar (682531)
Solid particle size: 5 mm
Maximum pumped liquid temperature: 35 °C
Shredder: No
Carrying handle: Yes
Protections: thermal, with automatic reset
Connection: 25/32 mm
Electric cable length: 10 m
Protection rating: IPX8
Weight: ~ 7 kg (682530) / 7.5 kg (682531)
WARNING!!!
USE IN SEPTIC TANKS AND/OR WC SEWER LINES IS PROHIBITED!
